300 WSM Ballistics Tables From Common Ammo Makers

Ammodotcom · March 10, 2026, 4:28am

You discovered our in-depth look at 300 Winchester Short Magnum ballistics from major ammo manufacturers.

Save time by clicking the links below to skip to your favorite ammunition company and find the 300 WSM ballistics data you need for your favorite factory ammo. When you’re ready to stock up, feel free to browse our full selection of 300 WSM ammo.

300 WSM Ballistics Charts

Barnes

Jump to a ballistics chart: VOR-TX 150 Grain TTSX | VOR-TX 165 Grain TTSX

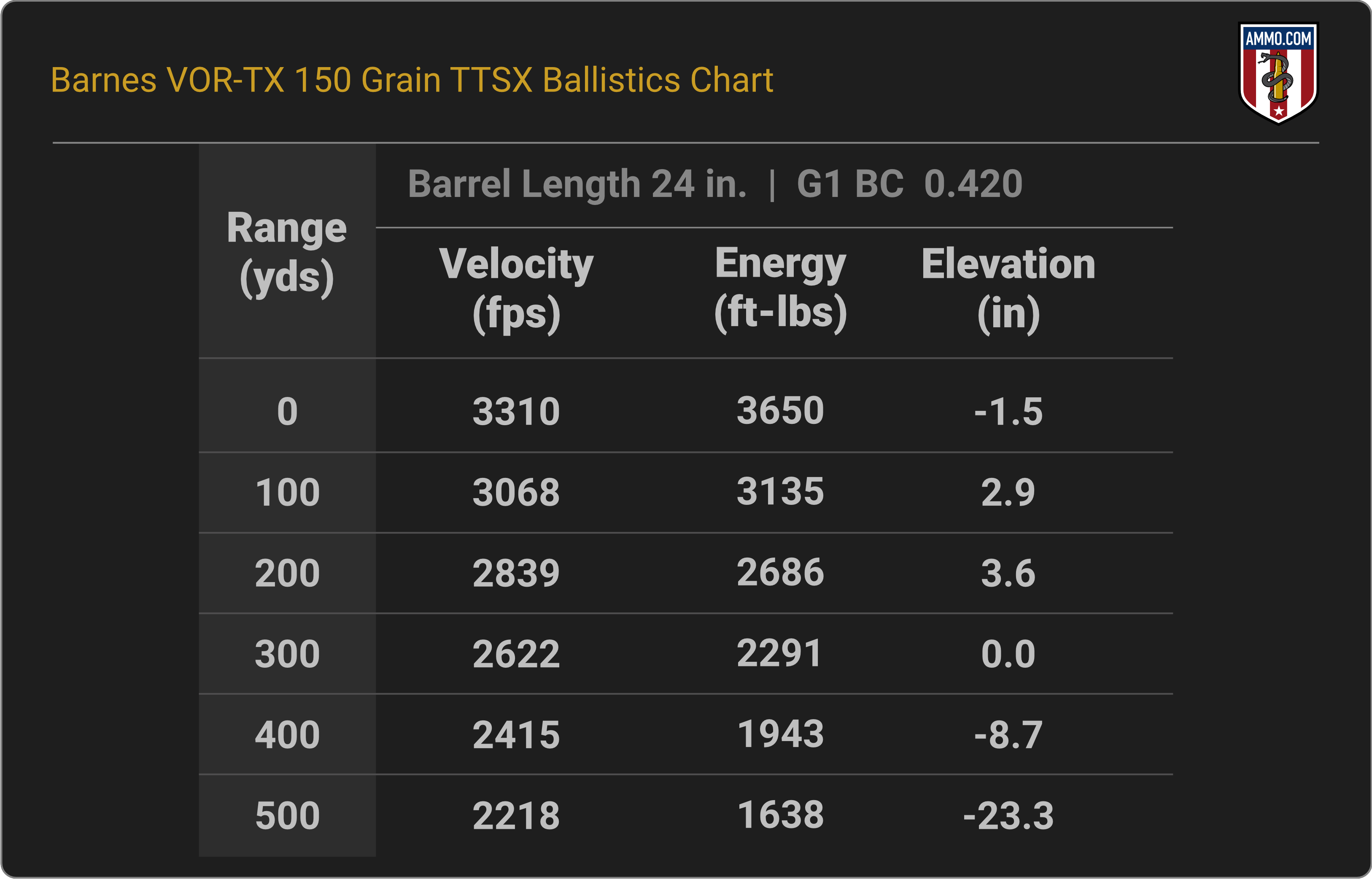

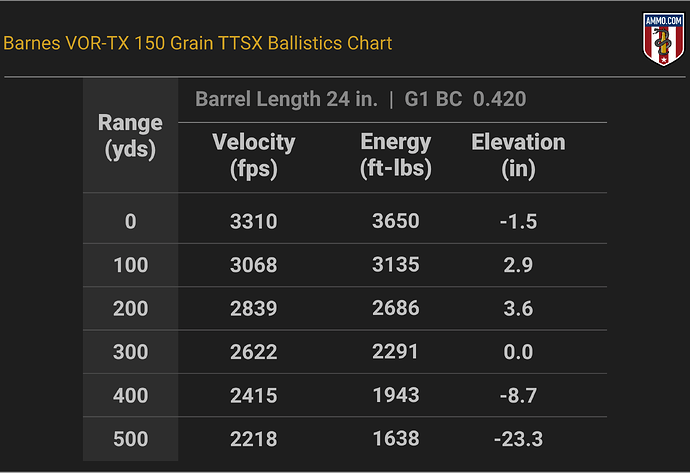

VOR-TX 150 Grain TTSX

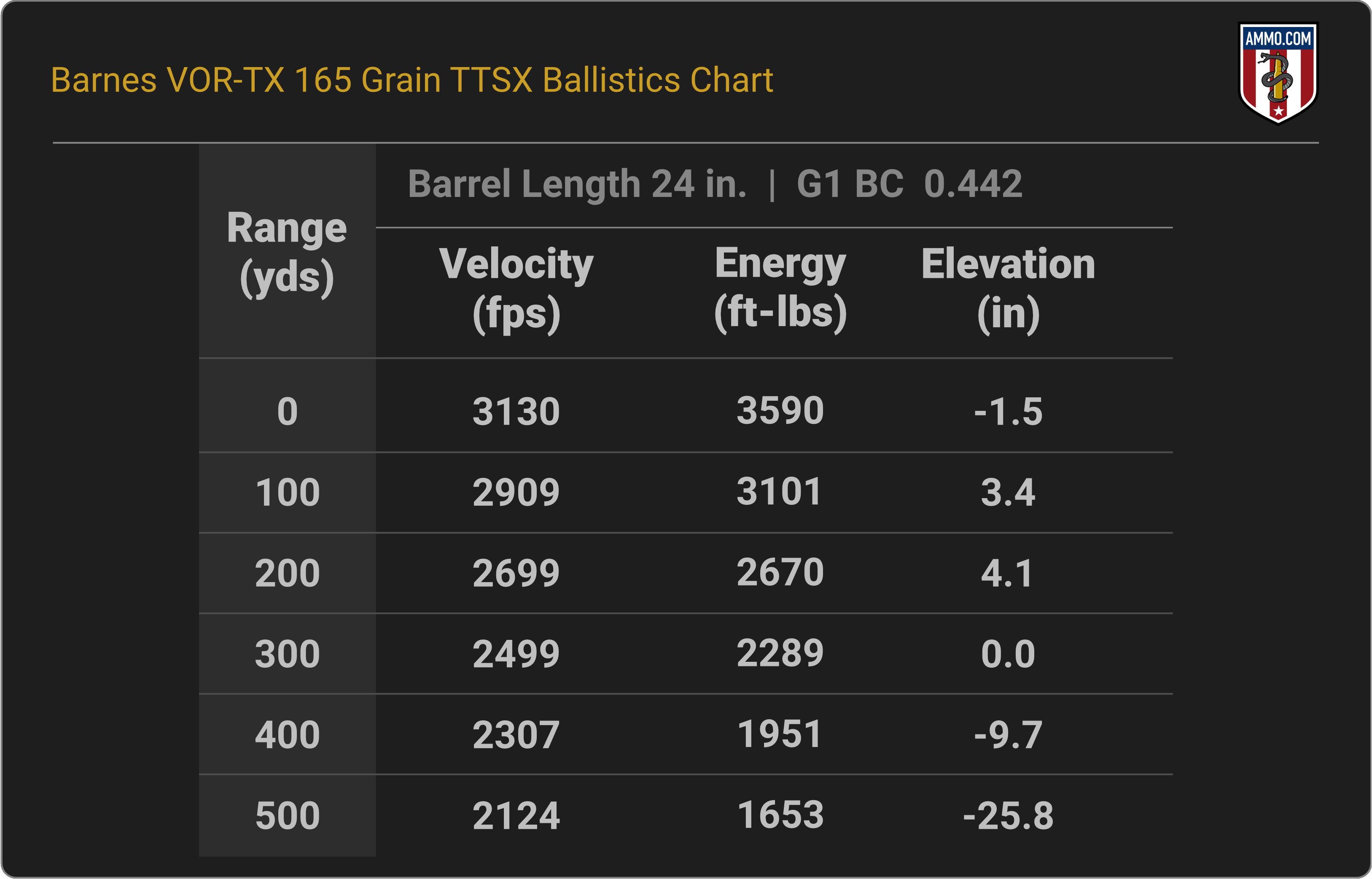

VOR-TX 165 Grain TTSX

Berger Bullets

Jump to a ballistics chart: 185 Grain Classic Hybrid Hunter | 205 Grain Elite Hunter

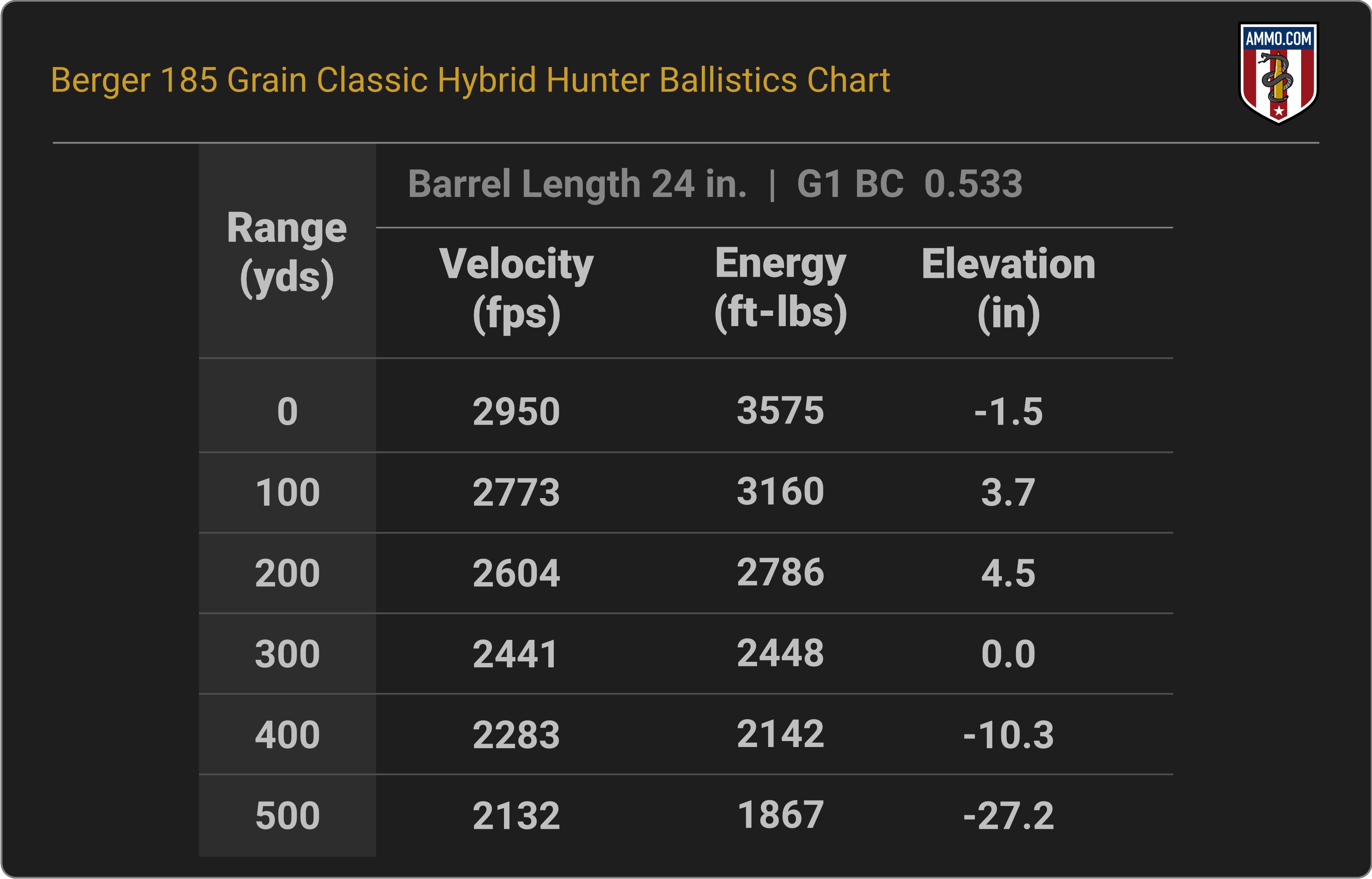

185 Grain Classic Hybrid Hunter

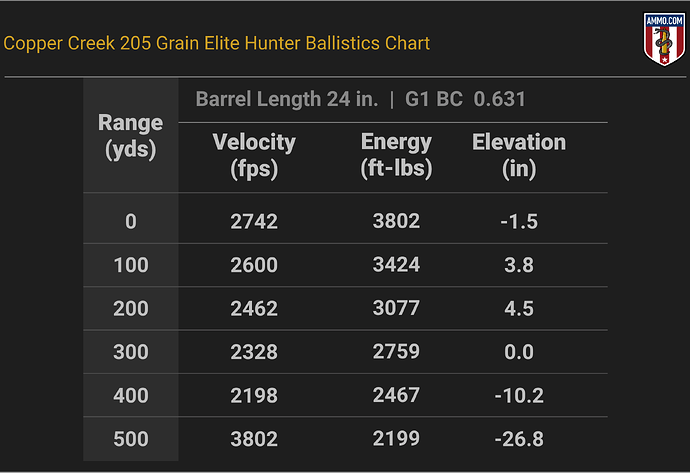

205 Grain Elite Hunter

Browning

Jump to a ballistics chart: BXS 180 Grain Tipped Solid Copper | Long Range Pro Hunter 180 Grain Sierra Tipped GameKing | Max Point 180 Grain Polymer Tip | Silver Series 180 Grain Plated Soft Point | Long Range Pro Hunter 195 Grain Sierra Tipped MatchKing

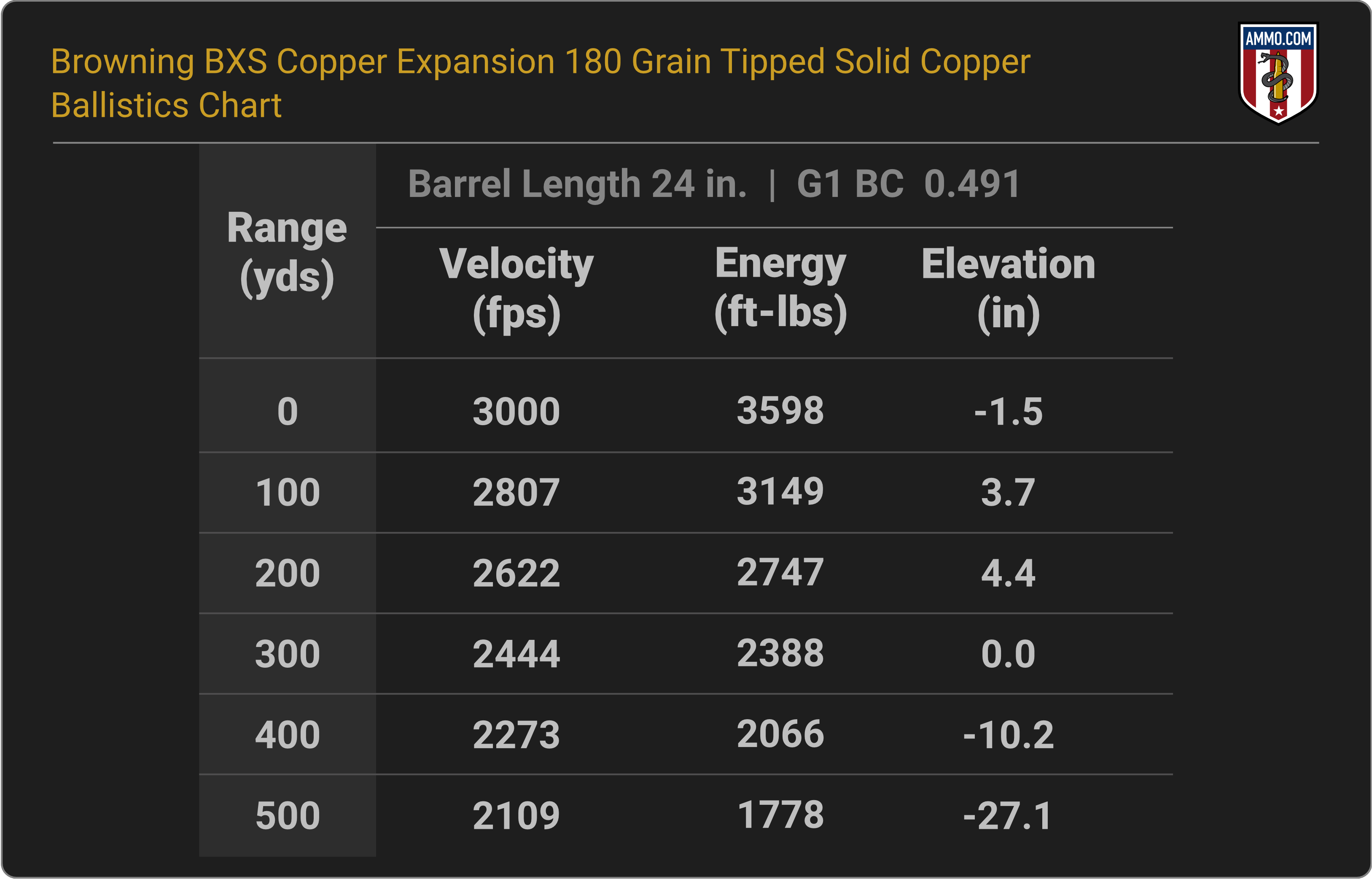

BXS 180 Grain Tipped Solid Copper

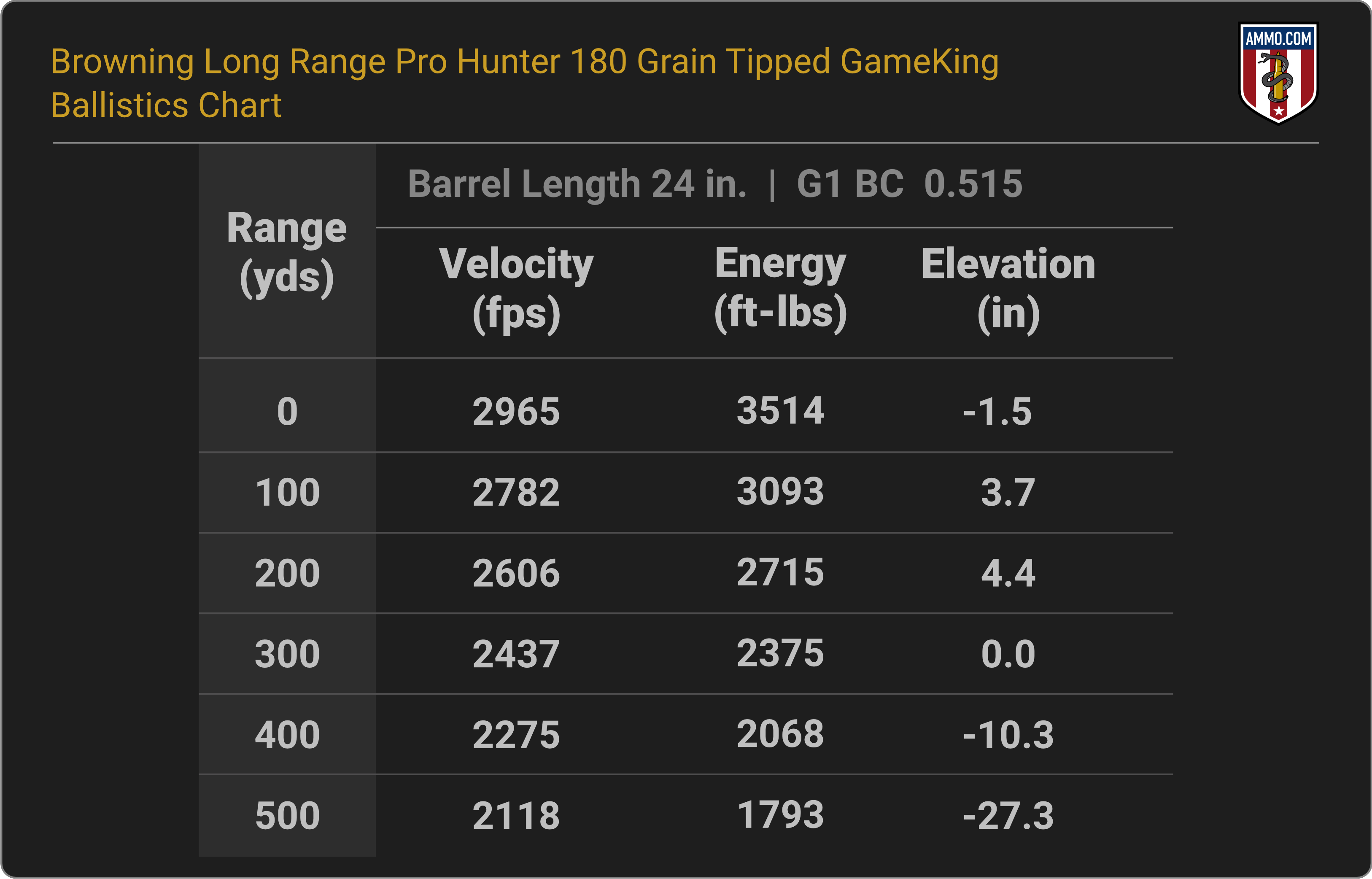

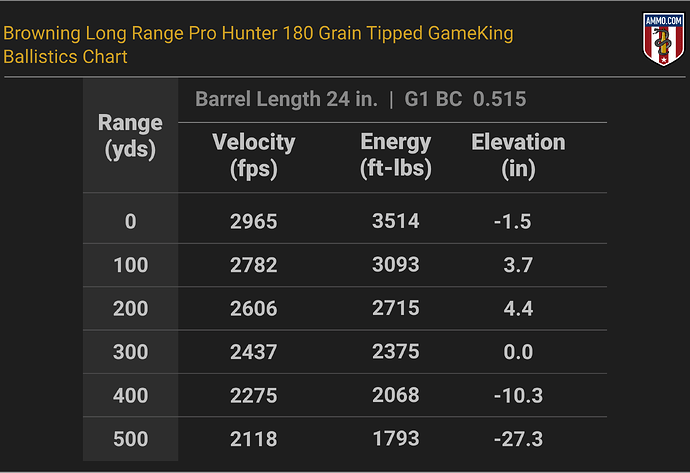

Long Range Pro Hunter 180 Grain Sierra Tipped GameKing

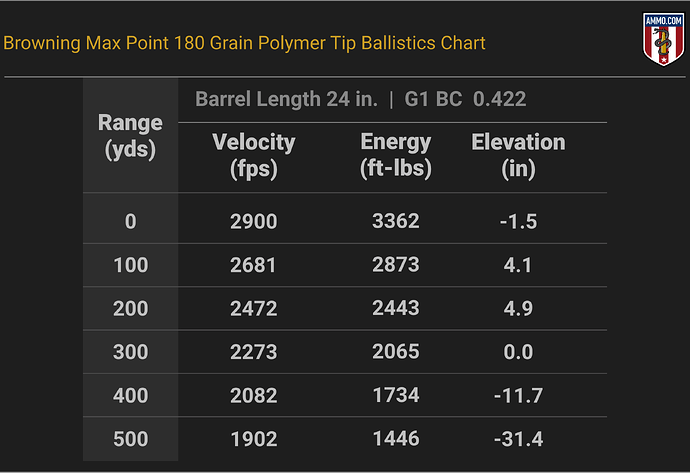

Max Point 180 Grain Polymer Tip

Silver Series 180 Grain Plated Soft Point

Ballistics data downrange soon — check back shortly.

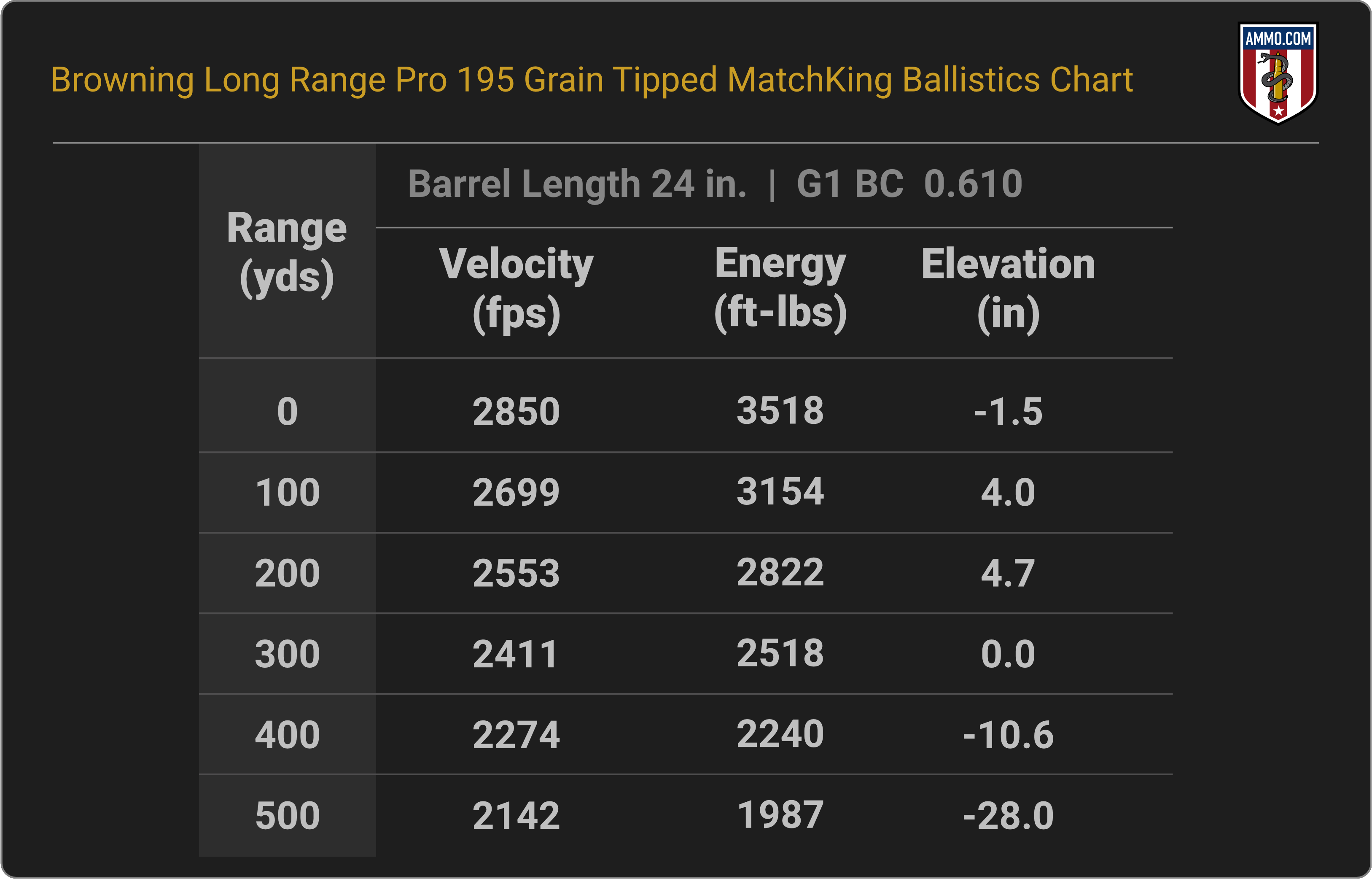

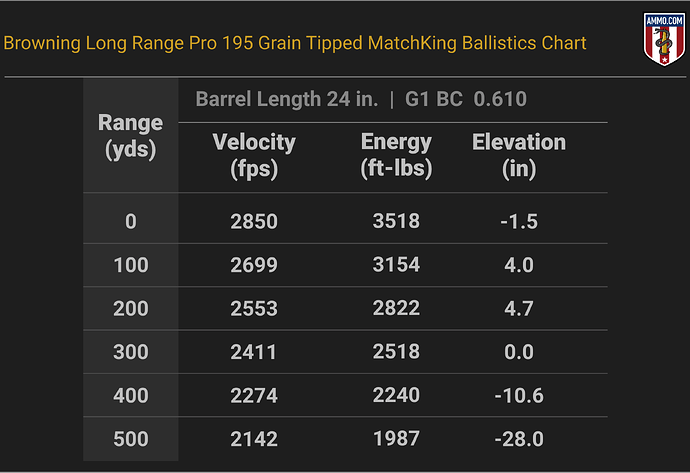

Long Range Pro Hunter 195 Grain Sierra Tipped MatchKing

Continue reading 300 WSM Ballistics Tables From Common Ammo Makers on Ammo.com

https://ammo.com/ballistics/300-wsm-ballistics

Devereaux · June 24, 2026, 8:10pm

Gotta ask. ?Is WSM all that popular. ?Has it replaced 300 WinMag. Seems to me it doesn’t have much advantage over the old standby 300 WM. Maybe a hundred FPM or so, but that’s not really that important. I would also guess it isn’t as versatile as the 300 WM simply because the case is smaller.

Kilroy · June 24, 2026, 8:10pm

The .300 WSM definitely has its fans, but it hasn’t entirely replaced the .300 WinMag. You’re right that the performance difference is minimal, often just a few hundred feet per minute in velocity. While the .300 WSM is more compact and can fit into shorter actions, the .300 WinMag offers more versatility with a wider range of bullet weights and types. Here are some key points to consider:

Case Size: The .300 WinMag has a larger case, which can accommodate more powder, potentially leading to higher velocities. - Versatility: The .300 WinMag is often favored for a broader range of applications, from big game to long-range shooting. - Popularity: Despite the emergence of newer cartridges like the .300 WSM, the .300 WinMag remains a classic choice among hunters and competitive shooters. In the end, it really comes down to personal preference and specific use cases. What do you think drives your choice between the two

Kilroy was here
